Modern Residential Single Cylinder Round Deadbolt

Single Cylinder Function: Single cylinder deadbolt has a keyed cylinder on the exterior and a thumbturn on the interior. Unlocking and locking the deadbolt is done by either a key on the exterior or via the thumb turn on the interior.

Available in 2 variations: Keyed Different and Keyed Alike

Keyed Different – locks with Different Keys.                                                                                                                                                  Each lock has its own unique key and can not be open by the others keys from the same locks.

Keyed Alike – when all locks in a set can be opened with the same key. This option is beneficial when multiple locks are use by the same person so that only one key needs to be used.

• Size: diameter is 2 3/4″ (70mm)
• Latch has square corner faceplate: 1″ (25mm) x 2 1/4″ (57mm)
• Backset: Adjustable for 2 3/8″ (60mm) or 2 3/4″ (70mm)
• Door thickness range: 1 3/8” (35mm) to 1 3/4” (45mm)
• Deadbolt type: Single Cylinder
• Includes 2 keys

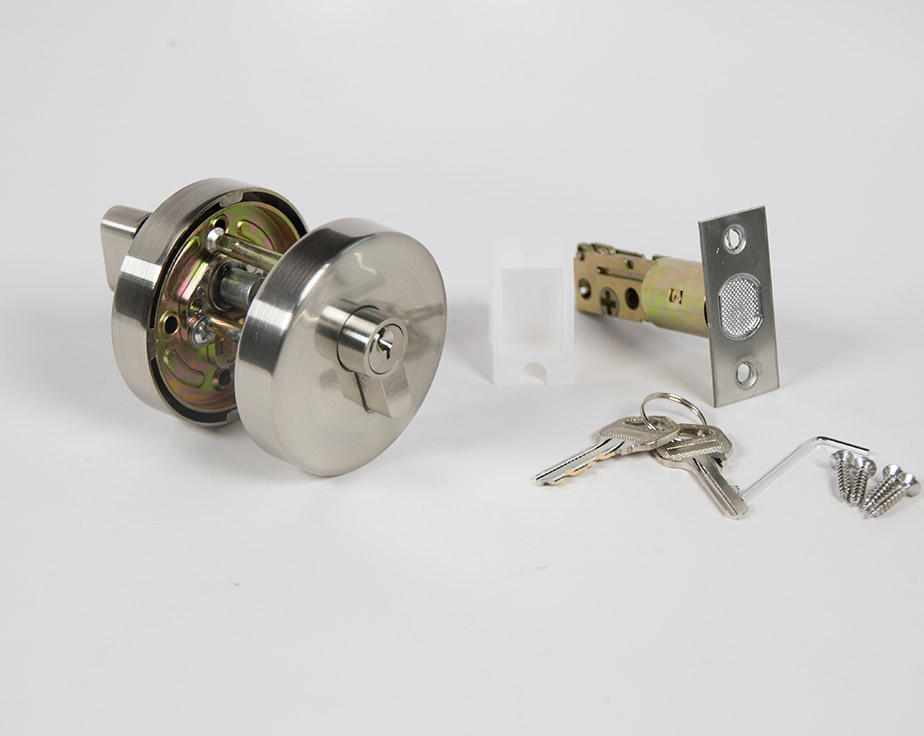

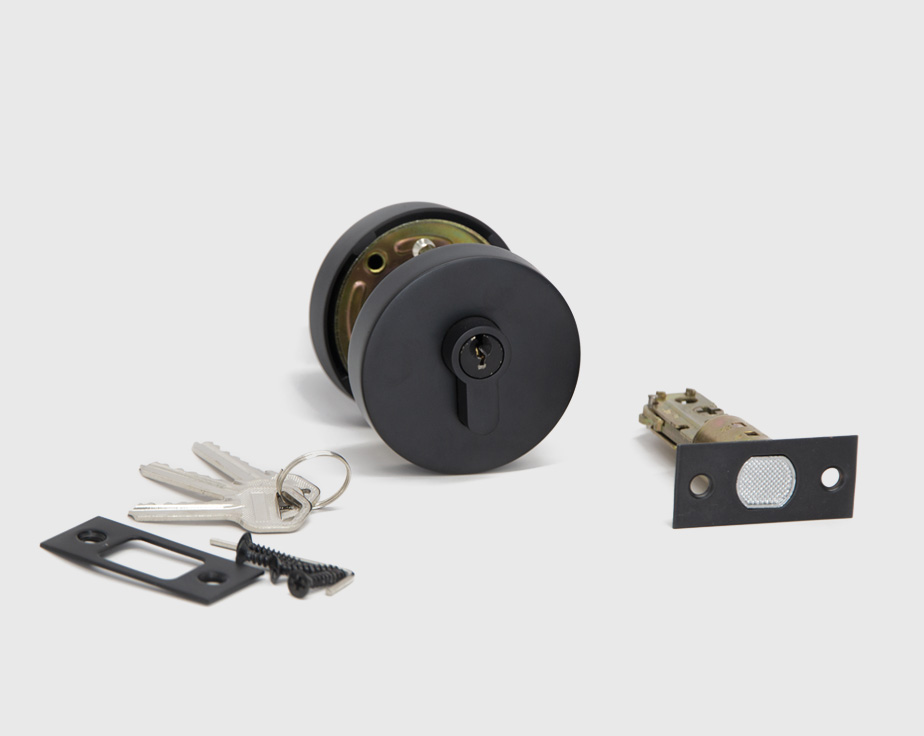

• Strike plate, mounting hardware are included
• Easy Installation

Perfect match for Saturn round rosette interior door handles

Modern Round Deabolt PDF
